Mechanical Seam 200

Mechanical Seam 200
Standing Seam

• Made on site

• Spans up to 5 foot over open framing

• High wind load resistance

• rated to under a 1/12 roof slope

• Rapid coverage

• Hides substrate imperfections

• 26 GAUGE 3D TEXTURED COATING

• Better Appearance

• Glare Resistant ( Better Color Appearance / Consistency )

• Better Traction / Grip for Installers

• Same Warranty as standard ( Smooth ) Coating

• Better Scratch Resistance

• Hides under Decking Imperfections

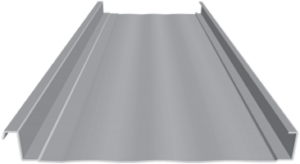

The Classic Metals Mechanical Seam 200 standing seam profile is the perfect panel if you are looking for a low slope application, or need to install roofing over open substrate.  With the optional sealant, this panel is rated to be used down to a .5 /12 roof pitch. The Mechanical Seam 200 is a 2″ rib standing seam that is available in 14″ and 18″ widths and is made using either 24ga or 26ga galvalume substrate. This panel’s unmatched floatation ability, combined with its superior stiffness, allows for longer panel lengths and 4-5 foot spanning abilities. All the trims are made from the same gauge material as the panels, and the trim system is designed so that is can be installed with ease and without any exposed fasteners. Our standing seam is manufactured On-Site, to allow for extreme panel lengths, less damage to material, and custom on site length changes. This allows for much greater flexibility with the installer, and cuts down on panel shortages and wait times.

Black
SR 31

Musket Gray
SR 37

Dark Bronze
SR 30

Burnished Slate
SR 34

Evergreen
SR 35

Bone White
SR 70

Almond
SR 58

Sierra Tan ♦
SR 46

Ash Gray
SR 54

Slate Gray ♦
SR 38

Charcoal ♦
SR 28

Terra Cotta ♦
SR 42

Colonial Red ♦
SR 33

Burgundy ♦
SR 27

Medium Bronze ♦
SR 31

Mansard Brown ♦
SR 29

Dark Bronze ♦
SR 30

Burnished Slate ♦
SR 29

Slate Blue
SR 31

Classic Green ♦
SR 30

Hartford Green
SR 29

Matte Black ♦
SR 27

*Copper Penny
SR 37

Musket Gray ♦
SR 35

Deep Black
SR 25

Terra Cotta
SR 35

Aged Copper
SR 47

Solar White
SR 68

Sandstone
SR 54

Sierra Tan
SR 35

Ash Gray
SR 39

Colonial Red
SR 30

Patina Green
SR 28

Regal White
SR 67

Slate Gray
SR 33

Medium Bronze
SR 30

Black
SR 29

Dark Bronze
SR 26

Evergreen
SR 27

Stone White
SR 60

Charcoal Gray
SR 29

Mansard Brown
SR 27

Slate Blue
SR 29

*Burgundy
SR 25

*Hemlock Green
SR 29

*Pre-Weathered
Galvalume SR 30

*Champagne
SR 37

*Regal Blue
SR 26

*Regal Red
SR 42

*Hartford Green
SR 26

*Copper Metallic
SR 49

*Silver Metallic
SR 59

Galvalume
SR 67

Dove Gray
SR 49

Surrey Beige
SR 42

SR – Solar Reflectance
